Flow diagram is from Design Concept to Computer modelling (CAD) to Model sectioning (STL creation) to Production to Final product.
3 Creating a model and building an artefact
There are often parallels drawn between AM and construction methods such as building a house out of bricks, the building of the pyramids or even creating a Lego model. These parallels are easy to see. For example, constructing a Lego model is in essence an additive process. The factor that makes AM different is the requirement for a direct link between the design modelling process and the manufacturing process (Figure 6).

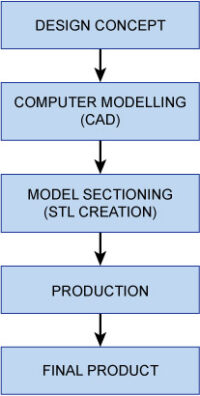

Figure 6 Flow diagram of typical additive manufacturing operations
Show description
There is no need to invest money in tooling. Nor is there a need to create prototypes. In the past, AM would have required a design to be converted into a CAD file format as a separate step. However, it is now commonplace for the design process to be completely contained within a CAD system, meaning no further step is required.
